Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.
Ordering Indication
| C | ||
|---|---|---|
| SCCA | ||
| L | ||
| A | ||
| N |

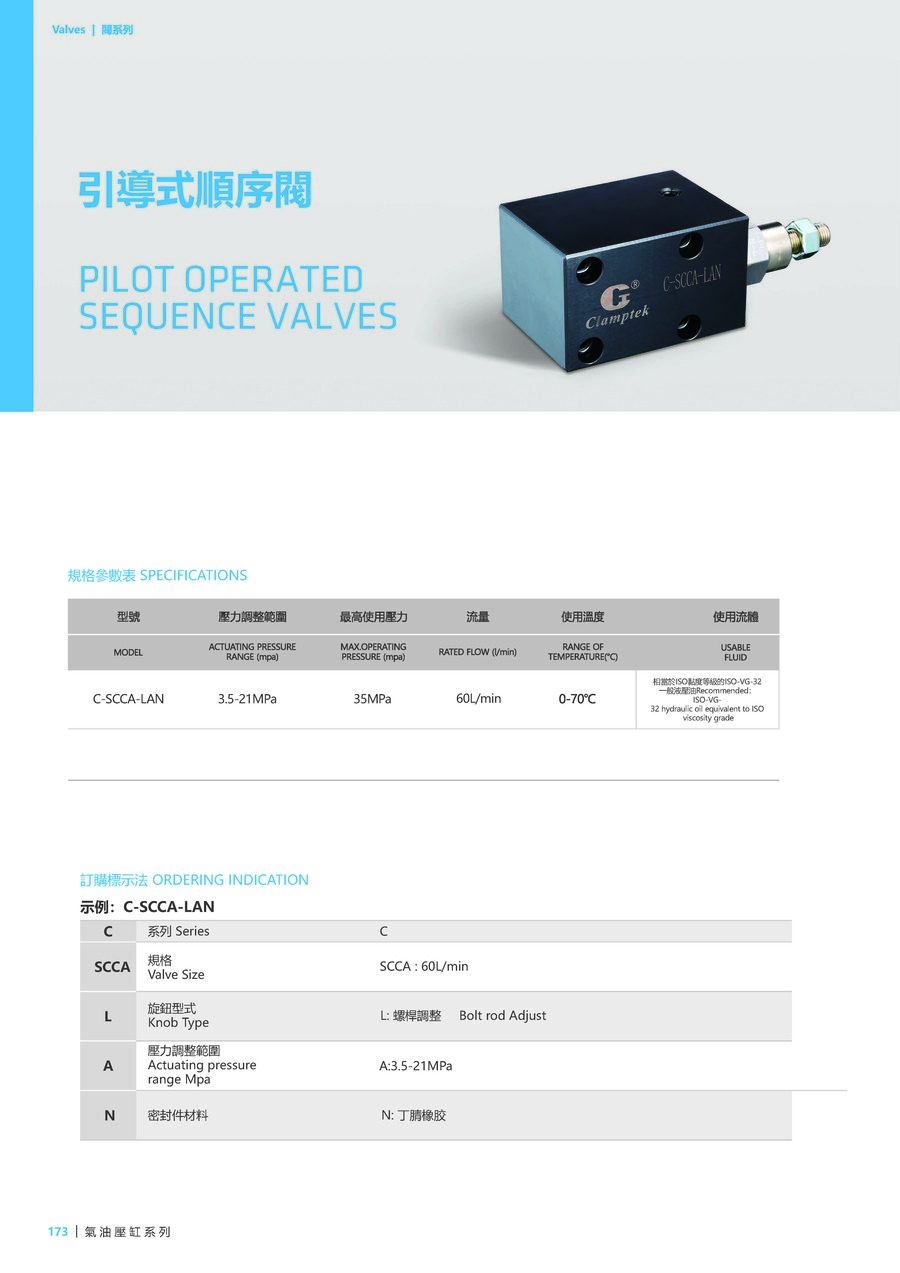

Product Information
| Model | C-SCCA-LAN |
|---|---|
| Actuating Pressure Range(mpa) | 3.5-21MPa |
| Max. Operating Pressure(mpa) | 35MPa |
| Rated Flow(l/min) | 60L/min |
| Range of Temperature(°C) | 0~70°C |
File Download
