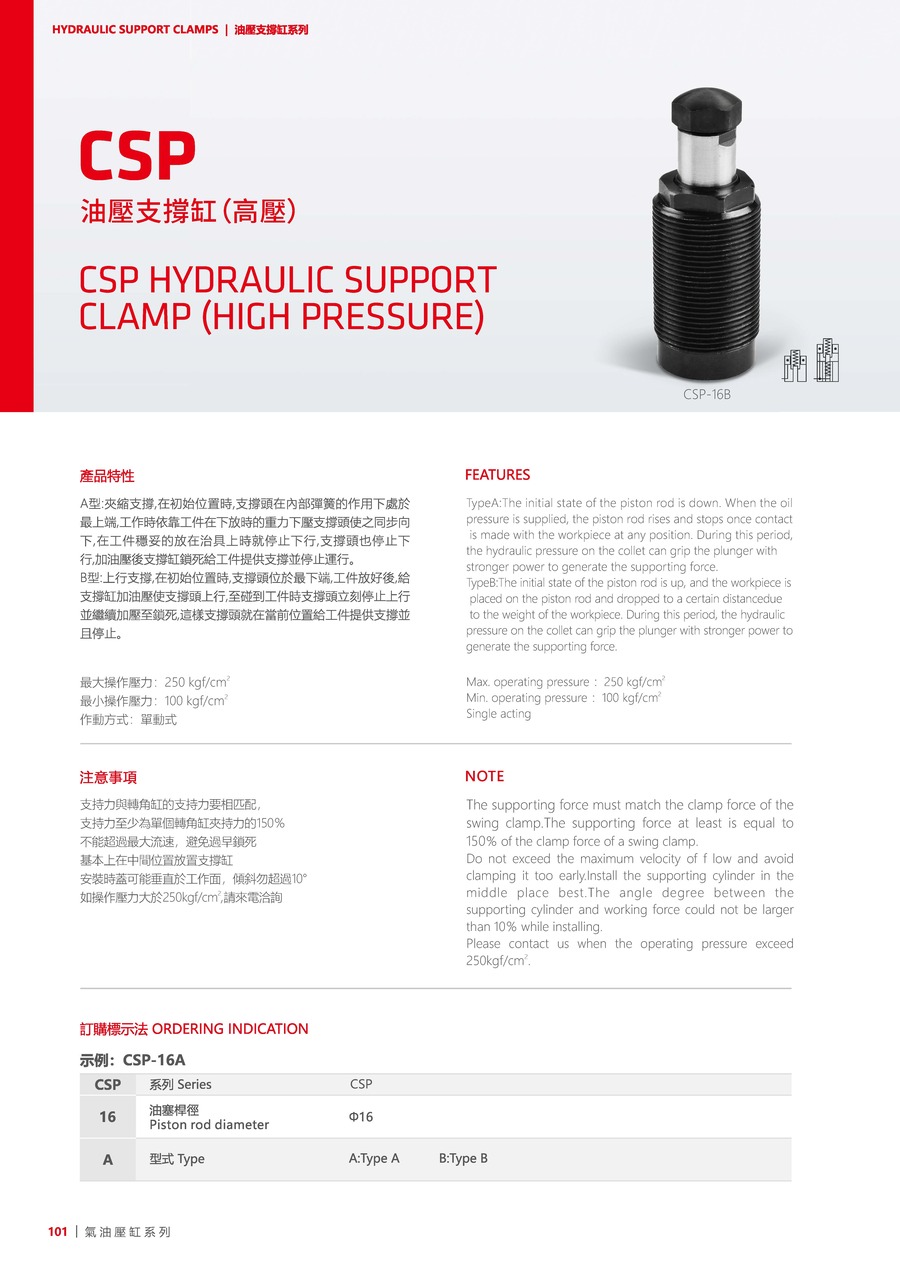

CSP

Product Information

TypeA: The initial state of the piston rod is down. When the oil pressure is supplied, the piston rod rises and stops once contact is made with the workpiece at any position. During this period, the hydraulic pressure on the collet can grip the plunger with stronger power to generate the supporting force.
TypeB: The initial state of the piston rod is up, and the workpiece is placed on the piston rod and dropped to a certain distancedue to the weight of the workpiece. During this period, the hydraulic pressure on the collet can grip the plunger with stronger power to generate the supporting force.

Max.operating pressure: 250 kgf/cm²
Mix. operating pressure: 100 kgf/cm²
Single acting
NOTE:
The supporting force must match the clamp force of the swing clamp.
The supporting force at least is equal to 150% of the clamp force of a swing clamp.
Do not exceed the maximum velocity of flow and avoid clamping it too early.
Install the supporting cylinder in the middle place best.
The angle degree between the supporting cylinder and working face could not be larger than 10° while installing.
Please contact us when the operating pressure exceed 250kgf/cm².

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Ordering Indication

CSP
16
A

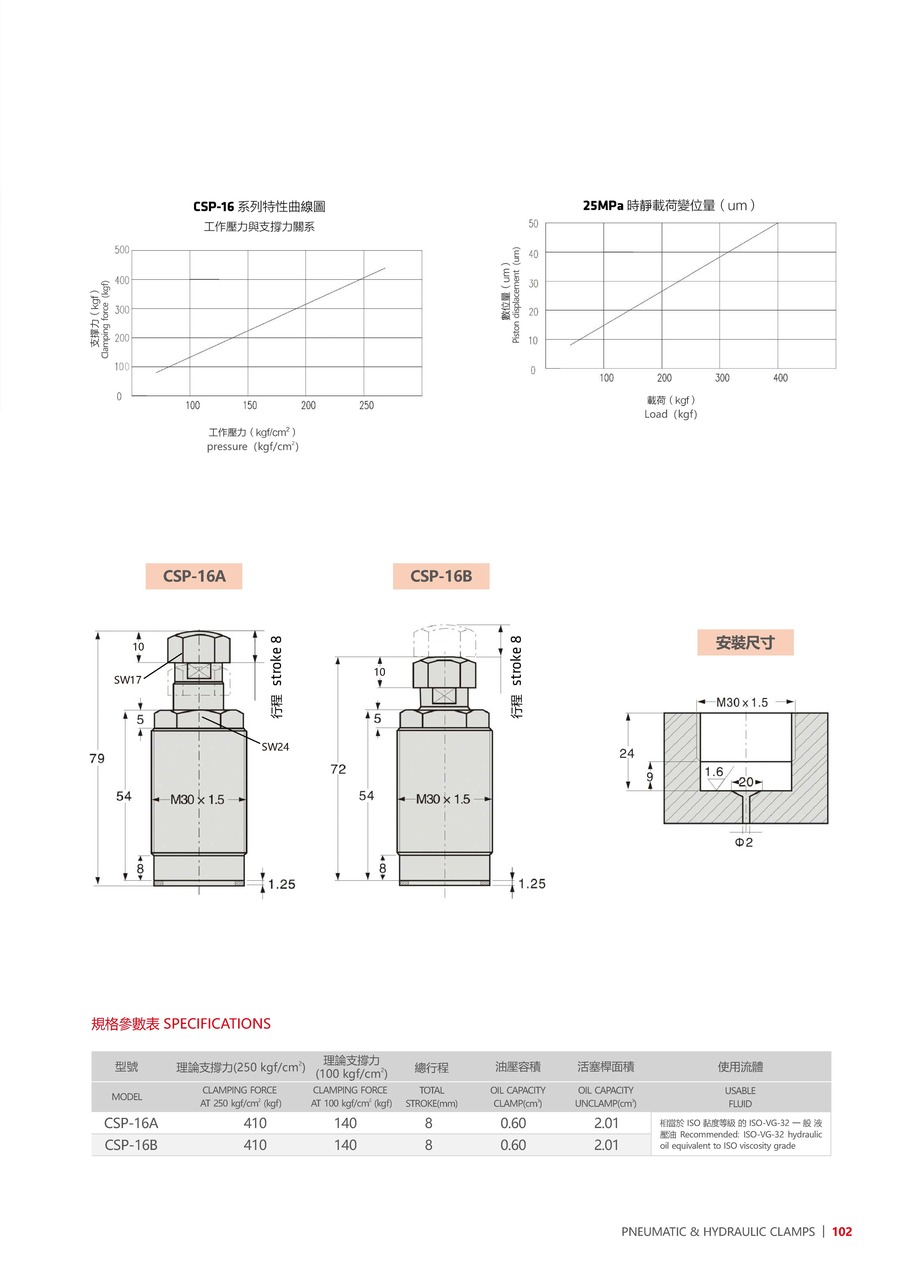

Product Information

Model CSP-16A CSP-16B
Clamping Force(250kgf/cm²) 410 410
Clamping Force(100kgf/cm²) 140 140
Total Stroke(mm) 8 8
Oil Capacity Clamp(cm³) 0.6 0.6
Piston Area(cm²) 2.01 2.01

File Download
